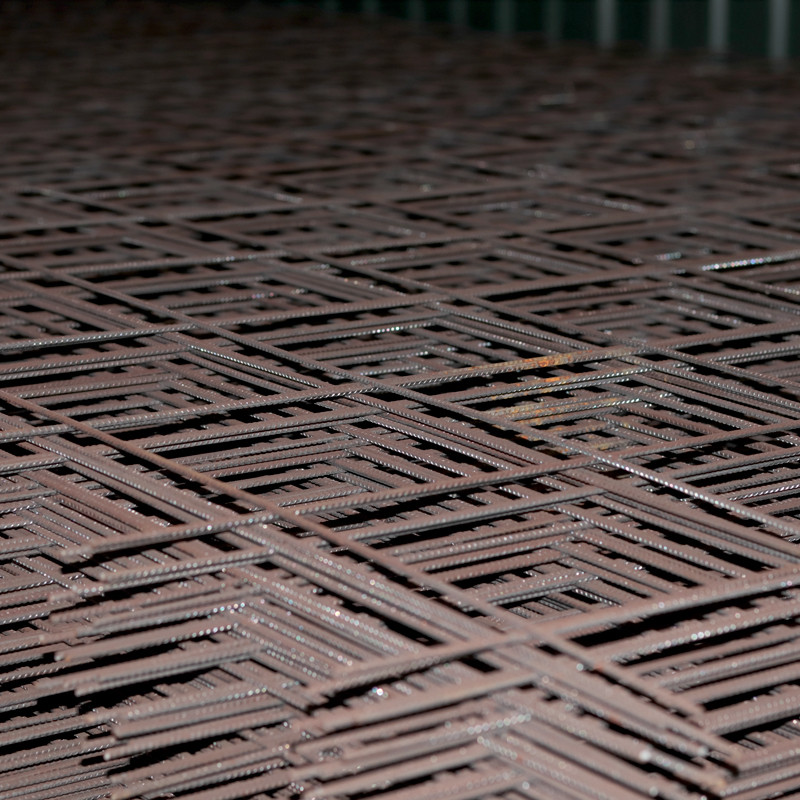

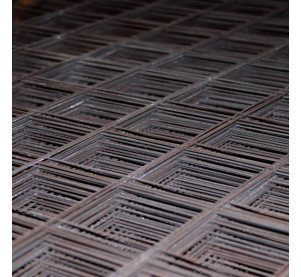

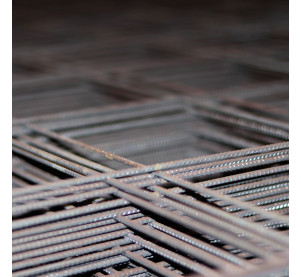

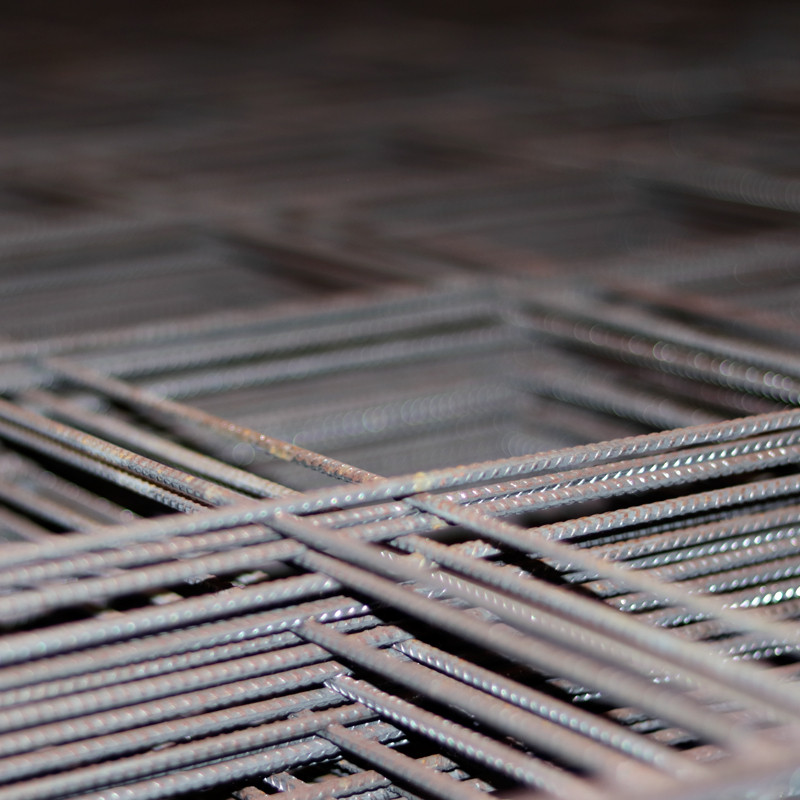

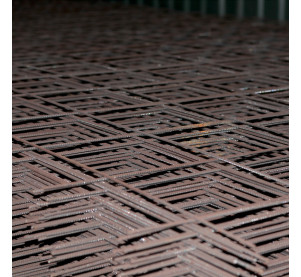

WIREMESH SHEETS (BRC)
The standard sheet size is 4.8m long and 2.0m wide.
SHEET WIRE SIZE (mm) SPACING (mm)
A393 10 200
A252 8 200
A193 7 200
A142 6 200
A98 5 200
A63 4 200
The Barbados National Standards Institute (BNSI) in their standard BNS 150:1990 (which is identical to BS 4483:1985) requires wire used in the manufacture of Fabric to have a characteristic yield strength of 460N/mm2 (aprox 66,700p.s.i) The hard drawn steel wire used in the manufacture of BRC Fabric meets this requirement.
BRC Fabric is a pre-fabricated steel reinforcement material. It is a rectangular or square mesh reinforcement manufacteured in flat sheets from cold reduced high yield strength steel wire.
Welded Wire fabric is manufactured on automatic welding machines which assures uniform spacing of wires and consistent cross-sectional areas.
The welding is accomplished by electronically controlled electrical process employing teh princicpal of fusion combined with pressure, which actually fuses the interesting wires into a homogeneous section without loss of strength.
Q. Do you sell half sheet?
A. No, we do not.
Q. Can i purchase a retangular sheet?
A. Yes, it will be a special order.
