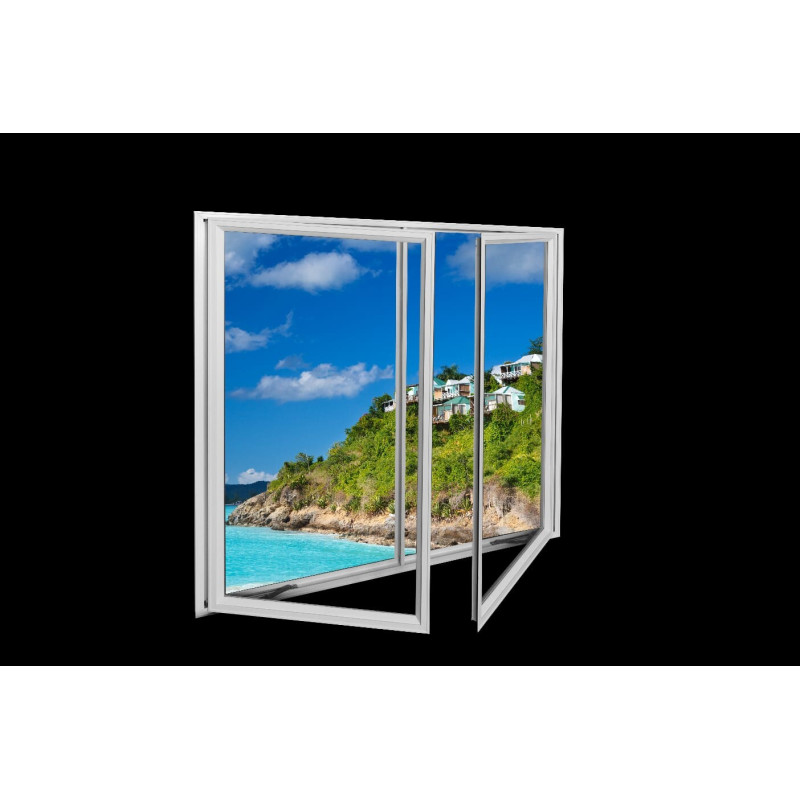

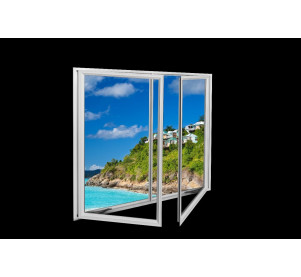

Aluminum Casement Windows
  • Aluminum Casement Windows

Aluminum Casement Windows

$200.00
703100C
Size: Casement 2x2 (24’’ x24’’) (no vat)
Quantity

Aluminum windows are windows where the casing, or frame, is made of aluminum rather than wood, vinyl or some other material.

Glass Specification



  Visible Light Sunlight SC Sum of transmittance of Solar energy
Clear
Transmittance Reflectance Reflectance
% 1% 2%
Direct Transmittance Direct Reflectance
% %
Shading Coeffient


4 mm
90 7.5 7.5
87 7
1
90



Specification for Architectural Aluminium Extrusionsription Standard Value
Thickness of powder coating AAMA 605.2 63.5 Microns
Thickness of powder coating AAMA 605.2 63.5 Microns
Gloss Gardener 60deg 50 - 100
Impact ASTM D -2794 160" lbs
Pencil Hardness ASTM D - 3363 H - 34
Cross Hatch adhesion ASTM - 3359 5B
Flexibility-Conical Mandrel salt spray ASTM B -117 180, 1/4" Mandrel
Humidity resistance ASSTM D - 2247 Excellent
Over-Baking resistance   200%+
Powder coating used   Clear Polyester TGIC free
Corrosion resistance   Excellent
Outdoor durability   High
U.V rating BS 1474 Excellent
Aluminium Alloy Webster Scale 6063
Hardness of Extrusions   10-12
Type of raw material (Aluminum Alloy) used   Virgin material only (no recycled material is used, Primary ingots only)
Temper   T5
Dimensions standards EN -755 -9 -2008
Wall thickness   Min. 1.25mm

Q: Are aluminum  windows better than uPVC?

Ans: Aluminium is also much stronger than uPVC and can last up to 45 years with little to no maintenance. Lasting between 20-30 years, modern uPVC windows are strong but not as strong as aluminium.

 Q: What is the disadvantage of aluminum windows?

Ans: The cost. However, the main drawback of aluminium windows is the cost. They are much more expensive to manufacture than uPVC windows; however, you need to balance this out with other considerations, such as their durability and longevity.

Q What is special about aluminum windows?

Ans: This layer is extremely resistant to corrosion from anything the weather can throw at it, including acid rain, and won't be damaged by cleaning products. And unlike timber or PVC-U frames, aluminum window frames won't swell, crack, split or warp over the years whatever the weather.
